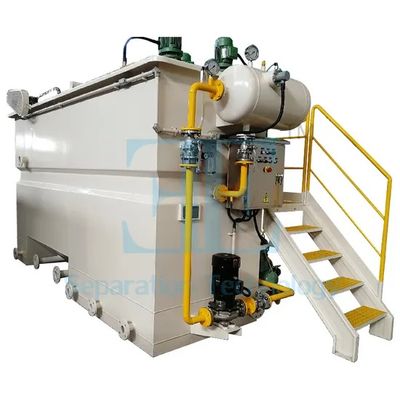

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

모든 제품
가압부 상조 (97)
슬러지 탈수기 (64)
수신 전용 시스템 (36)
산업적 스크린 (43)
폴리머 투여 시스템 (27)
라멜라 청징제 시스템 (35)
스태틱 믹서 (42)
무타그 바이오 칩 (19)
전기 조혈 시스템 (32)
인증
중국 Shanghai Ecopro Environmental Engineering Co., Ltd. 인증
중국 Shanghai Ecopro Environmental Engineering Co., Ltd. 인증
제가 지금 온라인 채팅 해요

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

큰 이미지 :  200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight

제품 상세 정보:
결제 및 배송 조건:
최소 주문 수량: 1
가격: 22968
접촉
상세 제품 설명
모델 번호.: DAF 치료 능력: 200 M3/h
차원: 17600*3800*2720mm 무게: 18500 킬로그램
생산 능력: 1000은 / 년에서 설정합니다 SS 콘텐츠: ppm 또는 mg/L
오일 함량: ppm 또는 mg/L 그리스 함량: ppm 또는 mg/L
지방 함량: ppm 또는 mg/L 안개 콘텐츠: ppm 또는 mg/L
pH 범위: 6 ~ 9 이사회 내용: ppm 또는 mg/L
COD 내용: ppm 또는 mg/L 마이크로 버블: 생성 중
자동 스래거: 액체 레벨 제어
강조하다:

200 M3/H Dissolved Air Flotation

,

17600*3800*2720 mm DAF System

,

18500 Kgs Wastewater Treatment System

Ecopro Sewage Treatment Units Landscape Water Purification System Sedimentation DAF Dissolved Air Flotation Tank
DAF System and Dissolved Air Flotation for Waste Water Treatment
Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in the water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles, causing them to float to the surface for removal.
DAF System Work Process
  1. Wastewater enters RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through a lift pump, coagulating with PAC and flocculating with PAM to form flocs.
  2. The wastewater and dissolved water enter the reaction zone of the DAF tank where microbubbles adhere to flocs, forming solid particles with density less than water.
  3. These particles float to the surface where scum is scraped to the slag tank.
  4. Clean water is collected through the water collecting pipe, with most discharged and a small portion recirculated to form dissolved water.
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 0
DAF System Fabrication Process
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 1
Technical Data
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 2
DAF System Features
  • Microbubbles generating system
  • Subsurface capture technology
  • Automatic slagging controlled by liquid level
  • Non-clogging releasing with high efficiency
Application of DAF System
  • Municipal Sewage
  • Slaughter House wastewater
  • Metallurgical Industry Wastewater
  • Spraying Sewage
  • Printing & Dyeing Sewage
  • Metal-Processing Sewage
  • Mining Stone Wastewater
  • Electronic Sewage
How to Select the Right Model
Consider these factors when selecting a DAF system:
  • Wastewater type (dairy, car washing, slaughter house, food processing, river water, etc.)
  • SS content (ppm or mg/L)
  • Oil & Grease & Fat (FOG) content (ppm or mg/L)
  • PH level (6-9 preferred; consider PH adjustment tank for corrosive substances)
  • BOD and COD levels (ppm or mg/L)
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 3
Packaging Options
200 M3/H Dissolved Air Flotation DAF System for Industrial and Municipal Wastewater Treatment with 17600*3800*2720 mm Dimensions and 18500 Kgs Weight 4
