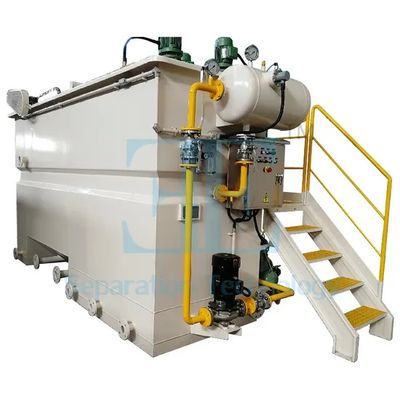

Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

큰 이미지 :  Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

제품 상세 정보:
결제 및 배송 조건:
최소 주문 수량: 1
가격: 13608
접촉
상세 제품 설명
모델 번호.: DAF 용량: 5m3/h
공기 압축기 전력: 0.55kW 용해된 펌프 동력: 3kw
스키머 파워: 0.1kW 응고 교반기 전력: 0.55kW
응집 교반기 전력: 0.55kW pH 교반기 전력: 0.55kW
치수: 3600*1700*1850mm 생산 능력: 100000/WEEK
SS 콘텐츠: ppm 또는 mg/L 오일 함량: ppm 또는 mg/L
pH 범위: 6 ~ 9 이사회 내용: ppm 또는 mg/L
COD 내용: ppm 또는 mg/L
강조하다:

0.55kw Coagulate Agitator DAF System

,

0.55kw Flocculation Agitator Dissolved Air Flotation

,

0.55kw pH Agitator Wastewater Treatment System

Ecopro The Dissolved Air Flotation Device Can Operate Continuously to Effectively Remove Grease and Suspended Particles in Sewage Treatment
DAF System and Dissolved Air Flotation for Waste Water Treatment
Dissolved Air Flotation is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids.
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
DAF System Work Process
The wastewater enter RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through the lift pump, and coagulates with PAC floculates with (PAM) respectively form the flocs.
Then the wastewater and dissolved water enter the reaction zone of the DAF tank, and the microbubbles and flocs in the dissolved water are mixed and adhered to form solid particles, which the density less than water, and float up to the surface of the DAF tank.
Under the action of buoyancy, scum is scraped to the slag tank. The clean water is collected down to the collect tank through the water collecting pipe, and most of the outer water is discharged (or into the next process), and a small part of the water is recirculated to form the dissolved water.
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 0
DAF System Fabricate Process
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 1
Technical Data
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 2
DAF System Features
  • Micro bubbles generating
  • Subsurface capture
  • Automatic slagging controlled by liquid level
  • Non-clogging releasing with high efficiency
Application of DAF System
  • Municipal Sewage
  • Slaughter House
  • Metallurgical Industry Wastewater
  • Spraying Sewage
  • Printing & Dyeing Sewage
  • Metal-Processing Sewage
  • Mining Stone Wastewater
  • Electronic Sewage
More Details about DAF System
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 3
How to select right model?
Wastewater type (dairy wastewater, car washing wastewater, slaughter house wastewater, food wastewater, river water...)
  • SS content (ppm or mg/L)
  • Oil & Grease & Fat & FOG content (ppm or mg/L)
  • PH (6~9 is preferred. Otherwise consider PH adjust tank before DAF tank, also have to consider the material of the DAF because of Corrosive substance)
  • BOD (ppm or mg/L)
  • COD (ppm or mg/L)
Ways of Packing
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 4
