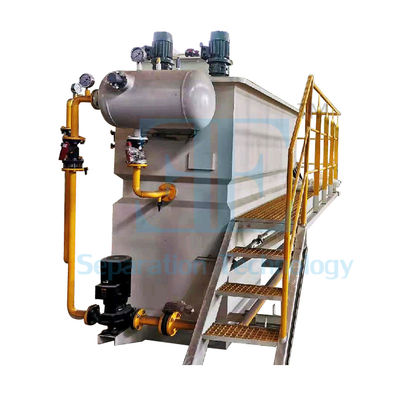

Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

큰 이미지 :  Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

제품 상세 정보:
결제 및 배송 조건:
최소 주문 수량: 1
가격: 13608
접촉
상세 제품 설명
모델 번호.: DAF-010 용량: 5m3/h
공기 압축기: 0.55kW 용해된 펌프 동력: 3kw
스키머 파워: 0.1kW 응고 교반기 전력: 0.55kW
응집 교반기 전력: 0.55kW pH 교반기 전력: 0.55kW
치수: 3600*1700*1850mm 생산 능력: 100/주
용존 공기 효율: 95% 쓰레기 수분 함량: 98% 미만
선호하는 pH 범위: 6 ~ 9 SS 콘텐츠: ppm 또는 mg/L
오일 및 그리스 함량: ppm 또는 mg/L
강조하다:

5m3/H Capacity DAF System

,

0.55kw Air Compressor Wastewater Treatment Machine

,

3kw Dissolved Pump Power Dissolved Air Flotation

Ecopro DAF System Wastewater Dissolved Air Flotation Machine
DAF System for Wastewater Treatment
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 0
Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles and float them to the surface for removal.
Working Process
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 1
  1. Wastewater enters coagulation and flocculation reaction tanks where chemicals (PAC and PAM) form flocs
  2. Water and dissolved air enter the DAF tank reaction zone
  3. Microbubbles adhere to flocs, forming particles less dense than water
  4. Floating scum is scraped to the slag tank
  5. Clean water is collected and either discharged or recirculated
System Advantages
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 2
  • High efficiency dissolved air system (≥95% efficiency)
  • Automatic liquid level control with scum moisture content <98%
  • Non-clogging design for easy maintenance
  • Stable treatment efficiency with automatic control
  • Compact footprint with high effluent quality
Specifications
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 3
Model Selection Criteria
  • Wastewater type (dairy, car wash, slaughterhouse, food processing, etc.)
  • Suspended solids content (ppm or mg/L)
  • Oil & grease content (ppm or mg/L)
  • pH level (6-9 preferred)
  • BOD and COD levels (ppm or mg/L)
Applications
Municipal sewage, slaughterhouses, metallurgical industry wastewater, spraying sewage, printing & dyeing sewage, metal-processing sewage, mining stone wastewater, electronic sewage.
Reference Project
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 4
Company Profile
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 5
Shanghai Ecopro Environmental Engineering Co., Ltd. specializes in water and wastewater treatment equipment and separation services. We provide comprehensive environmental solutions including static screens, rotary drum screens, lamella clarifiers, dissolved air flotation systems, electrochemistry systems, sludge treatment equipment, and various pumps.
